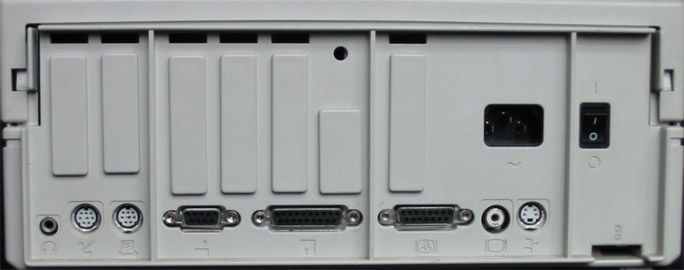

Vous trouverez ci-dessous le brochage de l'ensemble des connecteurs externes de l'Apple IIGS, en allant, lorsque vous regardez la face arrière d'un Apple IIGS, de la gauche vers la droite.
N° de Broche | Description |
---|---|
1 | Masse (Ground) |
2 | Ecouteur 1 |
3 | Ecouteur 2 |
N° de Broche | Signal | Description |
1 | DTR | Data terminal ready |
2 | HSKI | Handshake in |
3 | TX Data - | Transmit data - |
4 | GND | Ground reference and supply |
5 | RX Data - | Receive Data - |
6 | TX Data+ | Transmit Data + |
7 | GPI | General purpose input |
8 | RX Data + | Reveive data + |
N° de Broche | Signal | Description |
1 | SW1 | Switch input 1 |
2 | +5V | +5 volts |
3 | GND | Power and signal ground |
4 | PDL2 | Analog input 2 |
5 | PDL0 | Analog input 0 |
6 | SW2 | Switch input 2 |
7 | SW0 | Switch input 2 |
8 | PDL1 | Analog input 1 |
9 | PDL3 | Analog input 3 |
N° de Broche | Signal | Description |
1,2,3 | GND | Ground reference and supply |
4 | 3.5DISK | 3.5 or 5.25 inch drive select |
5 | -12V | -12 volt supply |
6 | +5V | +5 volt supply |
7,8 | +12V | +12 volt supply |
9 | DR2 | Drive 2 select |
10 | WRPROTECT | Write-protect input |
11 | Phase 0 | Motor phase 0 output |
12 | Phase 1 | Motor phase 1 output |
13 | Phase 2 | Motor phase 2 output |
14 | Phase 3 | Motor phase 3 output |
15 | WREQ | Write request |
16 | HDSEL | Head select |
17 | DR1 | Drive 1 select |
18 | RDDATA | Read data input |
19 | WDATA | Write data output |
N° de Broche | Signal | Description |
1 | GND | Ground reference and supply |
2 | RED | Red analog video signal |
3 | COMP | Composite sync signal |
4 | N.C. | No connection |
5 | GREEN | Green analog video signal |
6 | GND | Ground reference and supply |
7 | -5V | -5 volt Supply |
8 | +12V | +12 volt supply |
9 | BLUE | Blue analog video signal |
10 | N.C. | No connection |
11 | SOUND | Analog sound output |
12 | NTSC/PAL | Composite video output |
13 | GND | Ground reference and supply |
14 | N.C. | No connection |
15 | N.C. | No connection |
N° de Broche | Description |
---|---|
1 | Data |
2 | Reserved |
3 | +5V power supply at 500 mA for all devices |
4 | Ground |
